Mineral Resource Estimation Methodology

Modeling was conducted in the Universal Transverse Mercator (UTM) coordinate space relative to the North American Datum (NAD) 1983, and UTM zone 9N. The mineral resource block model utilized a block size of 6 m (X) x 6 m (Y) x 6 m (Z) to honour the mineralization wireframes. The percentage of the volume of each block below the bare earth surface, below the modeled waste overburden surface and within each mineralization domain was calculated using the 3D geological models and a 3D surface model. For the open pit optimisation, block values were diluted. The MRE is reported as undiluted with an effective date of January 17, 2023.

The Logan Property drillhole database consists of 58 drill holes that intersected the interpreted mineralization wireframes. The zinc and silver assays were composited to 2-meter composites lengths and the estimation utilized 2,651 composited samples. A total of 1.2% of the total drilled meters inside the interpreted mineralization wireframes were not sampled, assumed to be waste, and assigned a nominal waste value of half the detection limit of modern assay methods (0.0005 % Zn, 0.3429 g/t Ag).

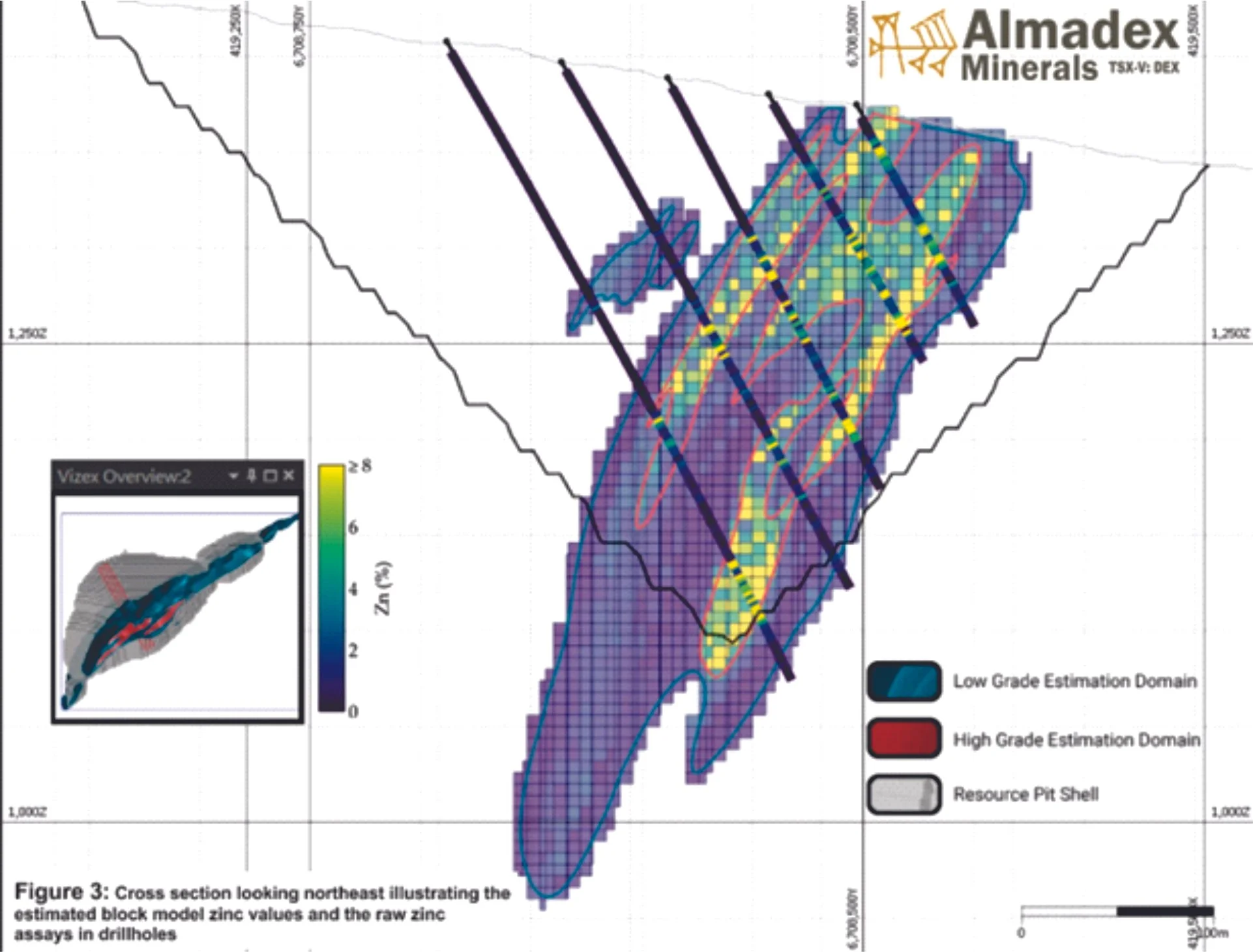

Zinc and silver estimation was completed using Ordinary Kriging. The search ellipsoid size used to estimate the Zn and Ag grades was defined by the modelled variograms. Block grade estimation employed locally varying anisotropy, which uses different rotation angles to define the principal directions of the variogram model and search ellipsoid on a per-block basis. Blocks within estimation domains are assigned rotation angles using a modelled 3D mineralization trend surface wireframe, which allows structural complexities to be reproduced in the estimated block model. The number of variogram structures, contributions of each structure, and their ranges are set per estimation domain and do not vary within the estimation domain.

A total of 201 bulk density samples are available from the Logan Property drillhole database. APEX personnel performed exploratory data analysis of the bulk density samples available and the density was assigned for each domain in the Logan Property. The density of the deposits ranged from 2.63 g/cm3 to 2.66 g/cm3. The non-mineralized zones were assigned density based on lithological unit. The modeled overburden was assigned a density of 1.8 g/cm and the remaining country rock was assigned a density of 2.57 g/cm3.

The unconstrained resource block model was subjected to several open pit optimization scenarios to establish that the Logan Project has the potential for future economic extraction. Blocks partially outside the mineralized wireframes were diluted with a nominal waste value of 0.0005 % Zn and 0.3429 g/t Ag based on the volume of the block outside of the mineralized wireframes. The process + G&A cost of C$NSR cutoff of $35/t is used to determine potential mill feed and is approximately equivalent to a 1.6 % Zn cutoff grade. Mr. Dufresne considers the parameters reasonable to constrain the mineral resource estimate and establish that the Logan Project has the potential for future economic extraction. The overall strip ratio for the Logan Property Open Pit is approximately 5.3:1.

There are no other known factors or issues known by the QP that materially affect the MRE other than normal risks faced by mining projects. The Logan Project is subject to the same types of risks that large base metal projects experience at an early stage of development in Canada. The nature of the risks relating to the Project will change as the Project evolves and more information becomes available. The Company has engaged experienced management and specialized consultants to identify, manage and mitigate those risks.

QAQC and Reporting

Almadex has prepared the NI 43-101 Logan Project Technical Report, which will contain details of the MRE.
This report can be downloaded here +

 The historical zinc and lead analyses which underpin the MRE were carried out at Bondar Clegg and ALS Chemex Laboratories at North Vancouver, British Columbia. Preparation of samples for assaying is assumed to have involved standard crushing, grinding and pulverization to produce pulps for assaying via hot aqua-regia and analysis via atomic absorption.

The QP’s conducted re-assaying of select mineralized intervals (approximately 5% of the drill database) and collected a suite of samples for specific gravity (density) determination to verify the historic drilling results. In total 232 verification samples were collected from representative mineralized intercepts geographically separated across the deposit (including 15% QA/QC duplicate, standard and blank samples) comprising 231 metres of half drill core from three separate holes from the 1986, 1987 and 1998 historical drill campaigns. Replicate samples were submitted for analysis to ALS Canada Ltd. (“ALS”) at their Whitehorse, YT (sample preparation) and Vancouver (ICP-MS), B.C. facilities. ALS is an ISO-IEC 17025:2017 and ISO 9001:2015 accredited geoanalytical laboratory and is independent of the Almadex and the QP. Drill core samples were subject to crushing at a minimum of 70% passing 2 mm, followed by pulverizing of a 250-gram split to 85% passing 75 microns. A 0.1-gram sample pulp was then subject to multi-element ICP-MS analysis via four acid digestion to determine individual metal content (ME-MS61). Zinc and silver values greater the 1% and 100 ppm, respectively were subject to overlimit analysis via four-acid ICP-AES (ME-OG62).  The QP followed industry standard procedures for the work carried out on the Logan Project, with a quality assurance/quality control (“QA/QC”) program. Blank, duplicate, and standard samples were inserted into the sample sequence sent to the laboratory for analysis. The QP detected no significant QA/QC issues during review of the data. Almadex and the QP’s are not aware of any drilling, sampling, recovery, or other factors that could materially affect the accuracy or reliability of the data referred to herein.

The scientific and technical information pertaining to the MRE has been reviewed and approved by Michael Dufresne, M.Sc., P.Geol., P.Geo. (AB-BC), Kristopher J. Raffle, P.Geo. (BC) and Alfonso Rodriquez, M.Sc. P.Geo. (BC), President, Principal and Consultant, and Senior Geologist, of APEX Geoscience Ltd. of Edmonton, AB, and are independent “Qualified Persons” as defined in National Instrument 43-101 – Standards of Disclosure for Mineral Projects.  Mr. Dufresne, Mr. Raffle and Mr. Rodriguez verified the data disclosed which includes a review of the analytical and test data underlying the information and opinions contained therein.

Next Steps

The Logan Zn-Ag Deposit is considered to exhibit significant potential for mineral resource expansion with mineralisation open at depth on multiple drill sections, in addition to exploration potential remaining along strike. Given that exploration and delineation drilling of the Deposit occurred during the 1980’s, Almadex is assessing advances in geophysical survey equipment and 3D inversion methods; including but not limited to IP/resistivity, gravity, magnetic and electro-magnetic surveys that may assist in targeting the expansion of mineral resources and potential discovery of new exploration targets.
